Trailer types and sizes
Use the MGC trailer specifications guide to find what trailer type your business needs.
All trailers types available on request. Dimensions are a guideline only.
Curtain Trailer (Standard)
- Length: 13.60 m
- Width: 2.48 m
- Height: 2.70 m
- Door Width: 2.45 m
- Door Height: 2.67 m
- Side Height: 2.65 m
- Most common general-purpose trailer (easy side loading)
Curtain Trailer (Steep)
- Length: 13.60 m
- Width: 2.48 m
- Height (Front): 2.70 m
- Height (Back): 3.11 m
- Door Width: 2.45 m
- Door Height: 3.00 m
- Side Height (Front): 2.65 m
- Side Height (Back): 3.00 m
- Good for taller cargo (rear loading advantage)
Mega Trailer
- Length: 13.60 m
- Width: 2.48 m
- Height: 2.94 m
- Door Width: 2.45 m
- Door Height: 2.90 m
- Side Height: 2.87 m
- Designed for high-volume / tall loads

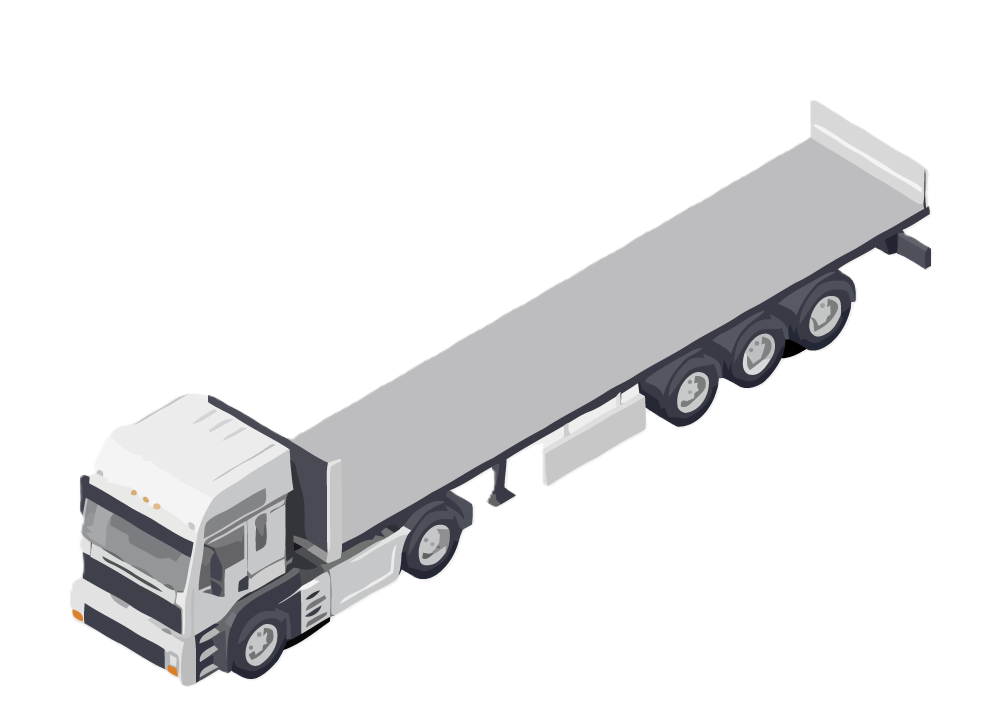

Flatbed Trailer
- Length: 13.60 m
- Width: 2.48 m
- No sides or roof — ideal for:
- Machinery
- Steel / timber
- Oversized loads

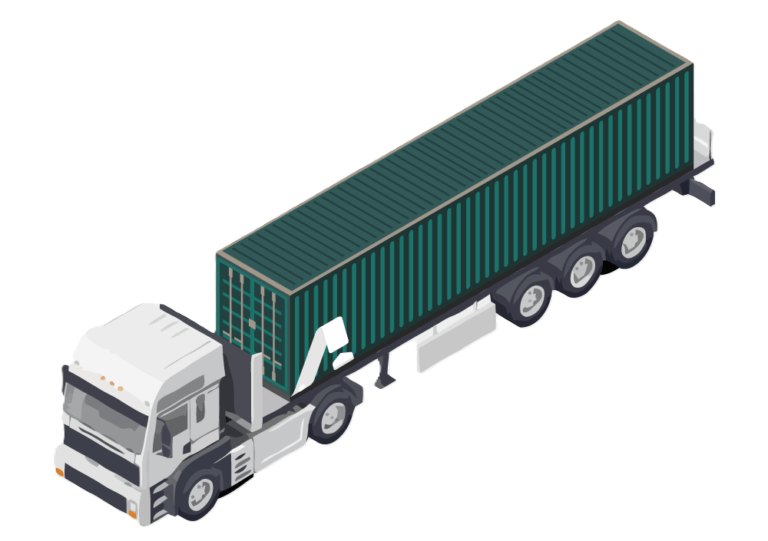

Box Trailer
- Length: 13.60 m
- Width: 2.48 m
- Height: 2.70 m
- Door Width: 2.46 m
- Door Height: 2.70 m
- Fully enclosed for secure transport

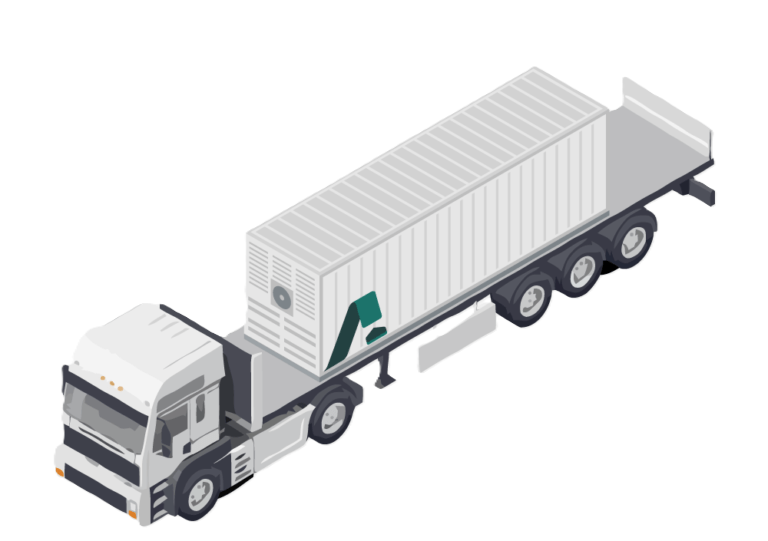

Reefer Trailer
- Length: 13.30 m
- Width: 2.48 m
- Height: 2.60 m
- Door Width: 2.46 m
- Door Height: 2.60 m
- Temperature-controlled (food, pharmaceuticals, etc.)
